🟢 Simple 2-Tier VPC

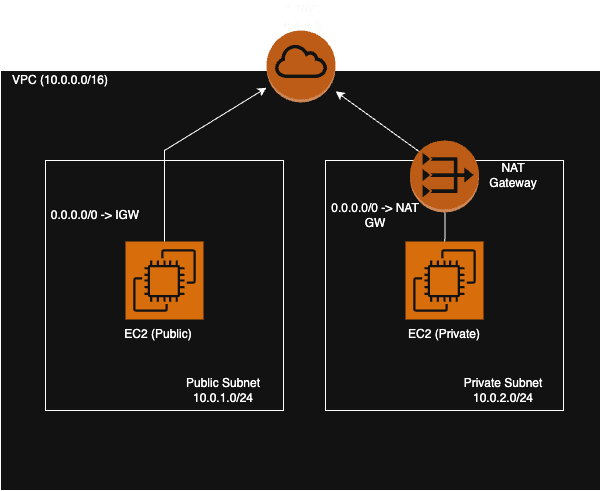

This architecture shows a public and private subnet inside a VPC. The public EC2 connects directly to the internet via Internet Gateway, while the private EC2 uses a NAT Gateway for outbound access.

Terraform Configuration


provider "aws" {
  region = "us-east-1"
}

resource "aws_vpc" "main" {
  cidr_block = "10.0.0.0/16"
}

# Public Subnet
resource "aws_subnet" "public" {
  vpc_id                  = aws_vpc.main.id
  cidr_block              = "10.0.1.0/24"
  map_public_ip_on_launch = true
}

# Private Subnet
resource "aws_subnet" "private" {
  vpc_id     = aws_vpc.main.id
  cidr_block = "10.0.2.0/24"
}

# Internet Gateway
resource "aws_internet_gateway" "igw" {
  vpc_id = aws_vpc.main.id
}

# Elastic IP for NAT Gateway
resource "aws_eip" "nat_eip" {
  vpc = true
}

# NAT Gateway in Public Subnet
resource "aws_nat_gateway" "nat" {
  allocation_id = aws_eip.nat_eip.id
  subnet_id     = aws_subnet.public.id
}

# Route table for public subnet
resource "aws_route_table" "public" {
  vpc_id = aws_vpc.main.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.igw.id
  }
}

resource "aws_route_table_association" "public" {
  subnet_id      = aws_subnet.public.id
  route_table_id = aws_route_table.public.id
}

# Route table for private subnet (uses NAT)
resource "aws_route_table" "private" {
  vpc_id = aws_vpc.main.id

  route {
    cidr_block     = "0.0.0.0/0"
    nat_gateway_id = aws_nat_gateway.nat.id
  }
}

resource "aws_route_table_association" "private" {
  subnet_id      = aws_subnet.private.id
  route_table_id = aws_route_table.private.id
}
